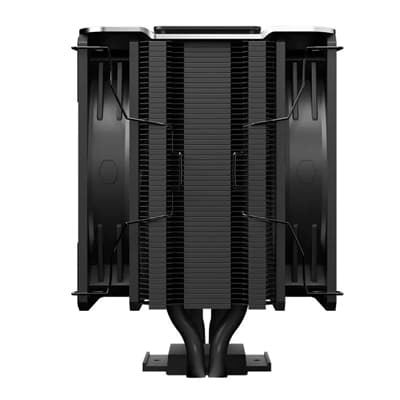

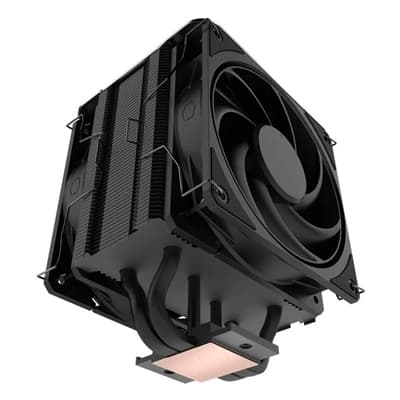

DISS A ARIA COOLER MASTER MAZ-T2HP-217PK-R1 V4 ALPHA 3DHP NERO LGA1851-1700-1200-1151-1150-1155 AM5-AM4 2xFAN 3DHP 133x114x161mm

Product name
V4 Alpha 3DHP Black

Product number
MAZ-T2HP-217PK-R1

Exterior color
Black

CPU socket
Intel LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket

CPU socket
AMD AM5 / AM4 Socket

Dimension
133 x 114 x 161 mm | 5.2 x 4.5 x 6.3 inch

Heat sink material
2 x 3DHP / Aluminum Fins

Fan item
Front / Rear

Fan dimensions (L x W x H)
120 x 120 x 25mm

Fan LED profiles
Non-LED

Fan quantity
Front: 1, Rear: 1

Fan speed
Front: 0-2050 RPM ± 10%, Rear: 0-1850 RPM ± 10%,

Fan airflow
Front: 107.2 m³/h (63.1 CFM), Rear: 85.8 m³/h (50.5 CFM)

Fan pressure
Front: 2.69 mmH2O, Rear: 1.77 mmH2O

Fan MTTF
>200,000 Hours

Fan pressure
Front: 22.6 dBA, Rear: 20 dBA

Fan bearing type
Loop Dynamic Bearing

Fan power connector
4-Pin (PWM)

Fan rated voltage
12 VDC

Fan rated current
Front: 0.12 A, Rear: 0.08 A

Fan safety current
0.35A

Fan power consumption
Front: 1.44 W, Rear: 0.96 W

Warranty
5 years

Series
V

Fan size
120

Heatpipes
2

Cooler type
Air Cooler
